FPC Visual-sorting Machine ORT-SORT-290
  • Features
  • Specification

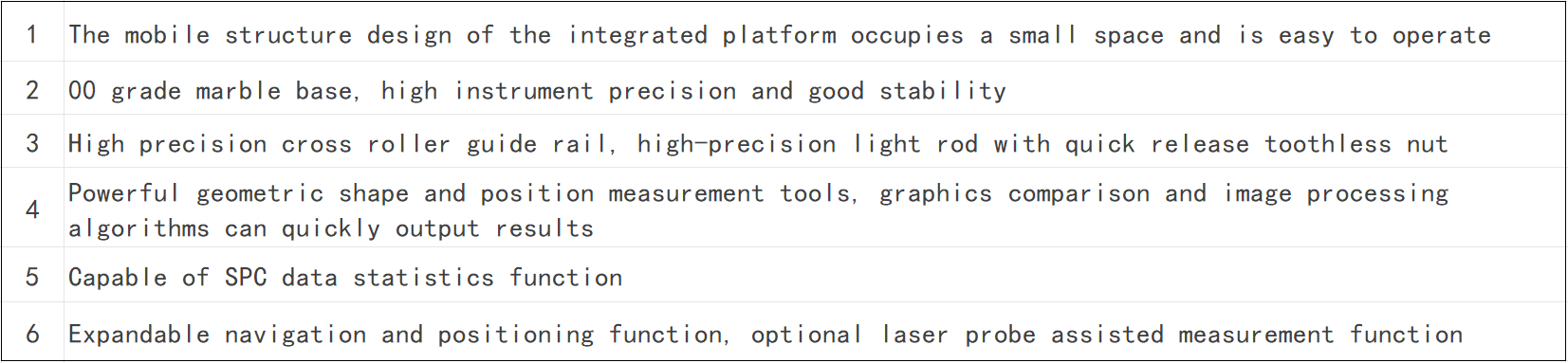

Precision Equipment      Hardware:
1Marble base, post and worktable, stable, firm framework.
2Double Y-axis & the adsorption platform, will ensure the workpiece is stable and without offset during movement; simultaneous finishing on cover& back can improve much efficiency.
3Precision screw transmission make movement fast, non-gap, flexible and reliable.
4The adsorption platform is supported by honeycomb panels, and equidistant support points can ensure reasonable support for the workpiece, and can be flexibly compatible with workpieces of various sizes
5Adsorption dust extraction and smoke removal system to maintain a good working environment.
6High-resolution beam quality visual module, stable and reliable data
7High-performance laser device, small thermal influence
812 months of ultra-long warranty period, lifelong maintenance, Good vision is your best choice.
Smart Software      ( 3D) Software
1Self-developed software with rich functions
2Humanized software interface, easy operation and strong stability
3Informatization software docking, seamless docking MES and other systems
Ultra-fast Detection      Detection Efficiency

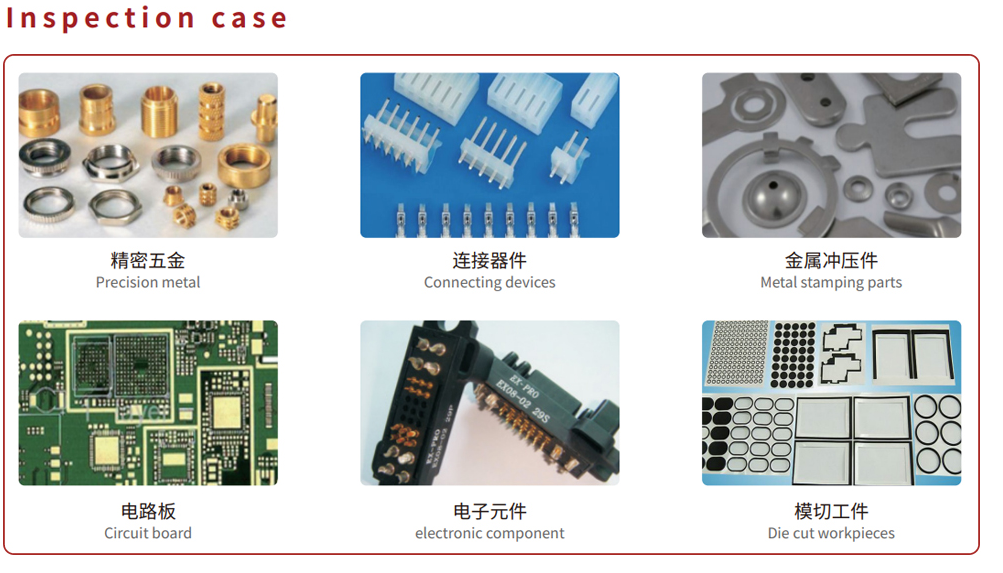

1Testing product: Compatible with all sizes in the range of 60mm*60mm~290mm*250mm
2Fast procession to single product or feature detection: 25S/set (eg. 10pcs defect products per set))
3Fast moving speed of worktable: 400mm/s
4Fast image calculation speed
Stable Performance      Operation:
1Continuous operation, low failure rate
2Continuous operation with high utilization rate:95%
3Long service life: The service life of important parts and lasers reaches 15000H
Model No(mm)      External Size(kgs)      Weight(kgs)    Max. load Power supply
ORT-SORT-2902140*1650*18402000kg3kg220V(AC)50HZ/0.8MPa
Worktable(mm)      Marble Size310*310(mm)      Glass Size290*290
(mm)       Travel RangeX:300mm  Y:800mm(mm)      Travel Range(Z axis)50mm;      (load&unload axis)100mm      (interleaf)1500mm
Vision systemHigh pixel CCD: 2000W / 500W
High resolution telecentric lens  12mmAF
  Laser systemUV laser 10W/5W
Expander 10X
galvanometer
Field lens
(um)      Linear Accuracy≤10μm
  positional accuracy0.05mm
Laser accuracy0.05mm
CT25S/eg. 10pcs defect products per set)
 Lighting sourceRed area light/ red strip light/ white circle light
SoftwareVideo & laser inspection software
