Steping type AOI ORT-STEP-004
  • Features
  • Specification
Precision Equipment      Hardware:
1Al. alloy worktable, granite base make it stable, firm framework.
2The synchronous handling module ensures that the workpiece is stable and has no offset during the detection movement; and can improve efficiency.
3Precision Ballscrew transmission make movement fast, flexible and reliable.
4Constant force in the length and width direction, with high-performance vision module to achieve precise measurement
5Constant pressure in the height direction and adjustable pressure, with high-performance contact sensors, to meet the stable detection of soft-pack batteries
6The assembly line guide module can ensure the attitude and spacing of the coming materials consistent.

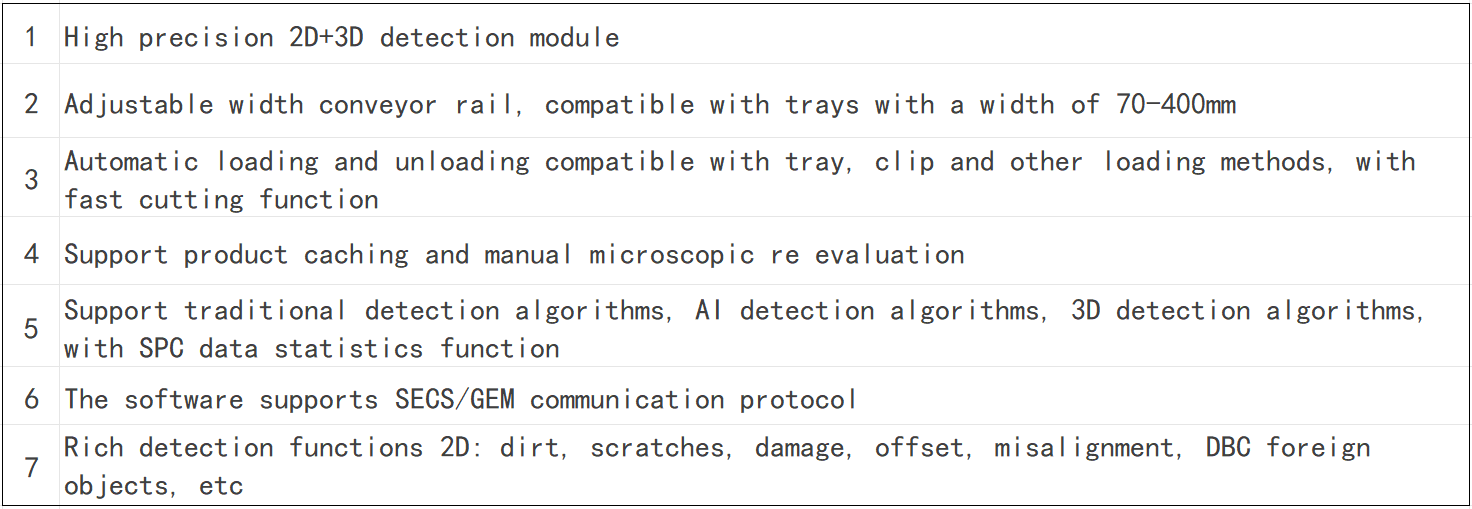

Smart Software)        ( 3D) Software
1
2
3
4
5
6
7
8
9
Ultra-fast Detection      Detection Efficiency
1Testing product: compatible size of length 40~130mm, width 20~90mm, thickness 3~8mm
2Fast procession to single product or feature detection, CT≤3.5s/pc
3Fast moving speed of worktable: the fastest Synchronous handling speed can reach 400
4Fast image calculation speed: powerful image calculation processing and calculation capabilities, work does not need to be corrected, coordinate conversion function, high measurement efficiency
Stable Performance      Operation:
1Continuous operation, low failure rate, normal basic maintenance once every 6 months
2Continuous operation with high utilization rate: 7*20H
3Long service life: Imported high-precision component modules are selected to ensure the long-term stability of the equipment
4Good repeatability: the accuracy of the equipment remains unchanged after long-term operation


 Model No(mm)      External Size(kgs)      Weight(kgs)   Max. load   Power supply
ORT-STEP-0041400*1200*1900500kg2kg220V(AC)50HZ/0.8MPa
Worktable(mm)      Marble Size147*147(mm)130*90*8
 Vision system High pixel CCD
High resolution telecentric lenses
Pressure-increasing systemPressure-increasing system
 Adjustable weights system
(um)      detection precision≤10μm
  Failure rate≤2%
False rate≤1.5%
CTCT≤3.5s
Laser beamSingle laser beam
SoftwareVideo software
