Horizontal One-touch Fast Video Measuring Machine ORT-FAST-120W
  • Features
  • Specification
Precision Equipment      Hardware:
1Al alloy main frame, post and worktable, stable, firm framework.
2High verticality of X axes can ensure measurement accuracy.
3Optical grinded Glass working stage, X-axis is calibrated to ensure travel direction vertical to glass plane so that the measuring result with high accuracy.
Smart Software      ( 3D) Software
1Multiform output such as DXF,WORD, EXCEL etc. CAD drawing input and comparison function. It can directly measure and calculate straightness, roundness, position, parallelism, inclination, perpendicularity, concentricity, symmetry, and other geometric tolerances.
2Ample geometrical measurement function including drawing, label, edit, operation board measure etc., It provides measurement and drawing functions for  point, line, circle, arc, ellipse, groove, rectangle, closed curve etc.
3SPC key parameters analysis according to the data of report form, automatic calculation of Ca, Cp, Cpk, Max, Min, Range, Avg, Std etc.
4Auto tolerance output and alarm with color, sound and note, especially have product dimension tracking function.
5The first one who introduced sub-pixel measurement in video measure industry. Do not need any professional operation   skills for operator, enhance measuring efficiency greatly.
6Top coaxial light source (bar light source is optional), bottom collimated light source (or parallel backlight source,) all lights adjustable.
7Can measure the various complex graphics including curves.
8Powerful photograph, montage and virtual measuring function.
Ultra-fast Detection      Detection Efficiency

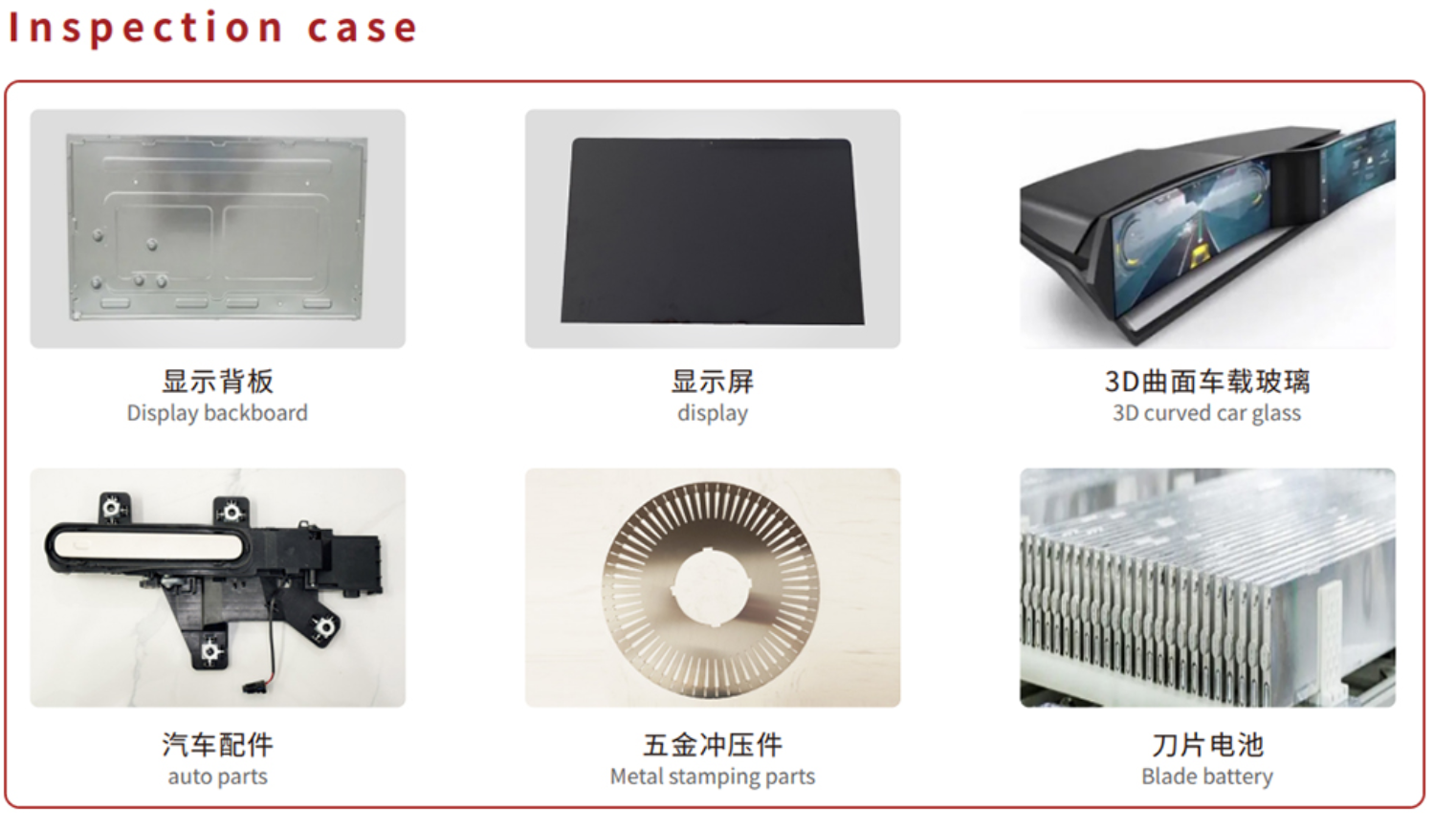

1Testing product: ≤90*60, suitable for various of production’s inspection
2Ample geometrical measurement function including drawing, label, edit, operation board measure etc., It provides measurement and drawing functions for point, line, circle, arc, ellipse, groove, rectangle, closed curve etc.
3Fast image calculation speed: powerful image calculation processing and calculation capabilities, work does not need to be corrected, coordinate conversion function, high measurement efficiency
Stable Performance      Operating:
1Continuous operation, low failure rate, normal basic maintenance once every 6 months
2Continuous operation with high utilization rate: 7*20H
3Long service life: Imported high-precision component modules are selected to ensure the long-term stability of the equipment
4Good repeatability: the accuracy of the equipment remains unchanged after long-term operation


Model No(mm)      External Size(kg)      Weight(kg)    Max. load  Power supply
ORT-FAST-120W800*260*35025kg/220V(AC) 50HZ
 Worktable(mm)      Marble Size100*100(mm)      Glass Size/
(mm)n       Travel Range/(mm)      Z axis adjustable by hand/
Vision systemHigh resolution area-array cameras
  visual field FOV:90*60  Working distance working distance:Horizontal 100mm
Accurate  image auto-measuring software
  Accuracy & CTaccuracy≤10μm;      CT≤1S/Pcs。
  Lighting source    Top coaxial light source (bar light source is optional), bottom collimated light source (or parallel backlight source,) all lights adjustable.
